New condition bag-given packing machine

FOB Reference Price:Get Latest Price
$100.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
MDP300
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Product Hightlights
After-sales Service Provided Application Packaging Material
Engineers available to service machinery overseas Food Plastic
Specifications
Type:
Other, Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
WELIN
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WELIN
Weight:
500kg
Dimension(L*W*H):
1760*520*1450
Certification:
CE
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Free Fumigation Plywooden Case for exporting, it's quick-connect design for easy open and re-usable;
Inner plastic film wrapping protect the goods from salting, wind or damage;
Port
ZHONGSHAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

♦ OVERVIEW

Packing carry, deliver and create value. With its advantage of performed pouches good quality, elegant image with unique zip-lock standup style design, it is good to enhance company impression, which is becoming more and more popular with the food plant. Combined with years industry experience, Welin has worked out several models of single station mini doypack machine and 6-8 station rotary pouch packing machine with the function of pouch pick-up, open, fill and seal, also options available: date printer, MAP function, auto zipper opener or output conveyor, etc. Compact design, safety and hygiece, easy clean, easy operatioin and easy maintance, various bag size and style run on the same machine; High quality components ensure long time reliable performance, no pouch, no materail, no running, popular in Europe & America market. Most used for SME plants, small footprint, limited invest, flexiable application, apply for liquid, powder and granules, workable for 3-side seal, zip-lock doypack pouch, gussette, Kraft open-window performed pouches, etc.

♦ APPLICATION

It is new-updated compact version pouch pick fill seal packing machine for various pre-made bags such as pillow bags, gusset bags, zipper bags etc. As a cost saving solution, it is ideal for a lot of application such as coffee, frozen foods, cookies, cereals, nuts, flower, candy etc. It can also be interfaced with other equipments for use with turnkey lines.

♦ Premade Preformed Pouches Types

standup premade pouch, resealable premade pouch, flat bottom premade pouch
3 side seal pouch, zipper pouch, zip-lock pouch, top zip pouch, heat seal pouch
standup with ziplock pouch, small premade pouch, large premade pouch, gusset pouch
window Kraft-paper pouch, sprout standing pouch, special-shaped pouch
valved pouch, shelf storage life pouch, box pouch, Euro-hole handling pouch
No-oxegen pouch, coffee pouch, big pouch, transparent Pre-formed pouch

♦Key Technology

New generation sanitary design & build
Easy clean and avoid trash accumulated.
Compact footprint & Low Maintenance
Compact single station, pneumatic system used for safety running & low maitenance.
Auto Operation Control
From pouch pick up- open - fill - seal to output which is controlled by PLC
7" User's friendly H.M.I. ensure high efficiency performance.
Easy to Adjust & Operate
Depending on product condition and pouch type, main menu settings can be set on the screen, multiple pouch type can run on the same machine by suction position adjusting.
No Pouch, No Dump
Auto pouch detecting sensor, no pouch no dump ensure material splash down.
Automatic breakdown detection and solution is displayed on the screen clearly.
Various option functions are available as per request, such as auto zip-lock open device/Hot Stamp Printer/ Hopper Shaker/ Product Settler.

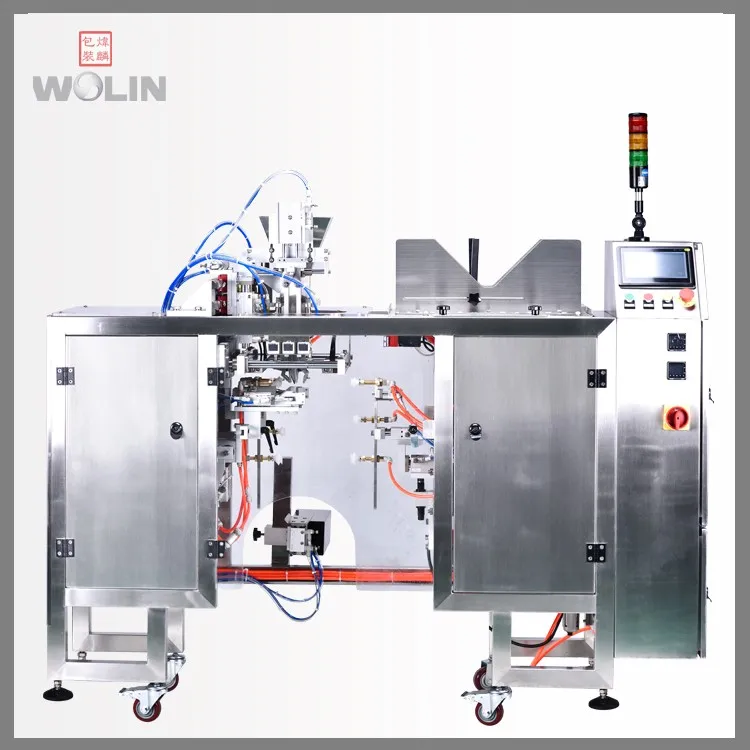

Main Parts of Mini Doypack
PLC Control, Touch Screen, Temperature Control, Automatical Pneumatic Components, Gas Processor, Alarm.
Building Material of mini doypack, the frame is made of 304SUS and anodized aluminium profiles
Interlock Safety, CE Application - auto stop when the door is open,

♦ SPECIFICATIONS

Model
WL-MDP300
Premade Pouch Type
standup premade pouch, resealable premade pouch, flat bottom premade pouch, 3 side seal pouch, zipper pouch, zip-lock pouch, top zip pouch, heat seal pouch
Premade Pouch Size
120-300mm(W) *120-350mm(L)
Speed
Max 15 BPM
Power Supply
220V/50HZ or 60HZ Single Phase 1KW
Air Pressure
7.0 CFM@80 PSI
Operation Panel
7 inch user's friendly touch screen
Electronic
Mitsubishi PLC/ Omron Temperature Controller
Omron Power Switch / Schneider Breaker
Pneumatic
Pneumatics component Airtac from Taiwan;
PIAB Vacuum generator/SMC Vacuum Fliter
Options

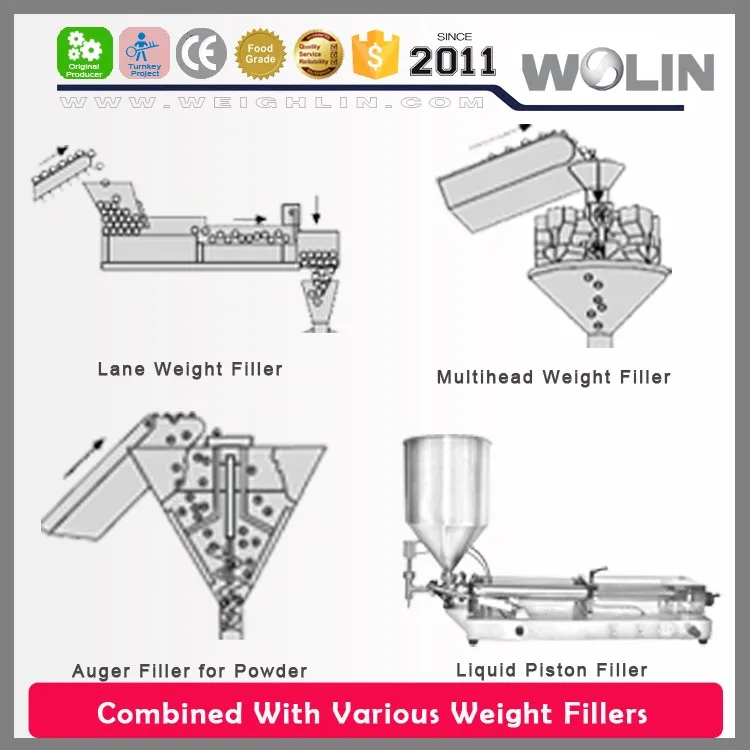

Auto Zipper open device, SMC Pneumatic Parts, Product Settler, Gasflush and vacuum function, Take Away Conveyors, Filling devices, Ribbon Stamp Printer
Products View
Company Infomation

Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
