Bags, Bottles, Cans, Cartons, Case, Pouch, Stand-up Pouch, Other
Place of Origin:
After-sales Service Provided:
Engineers available to service machinery overseas
20 Set/Sets per Month
Packaging & Delivery
Crate box for export
1 - 1
To be negotiated

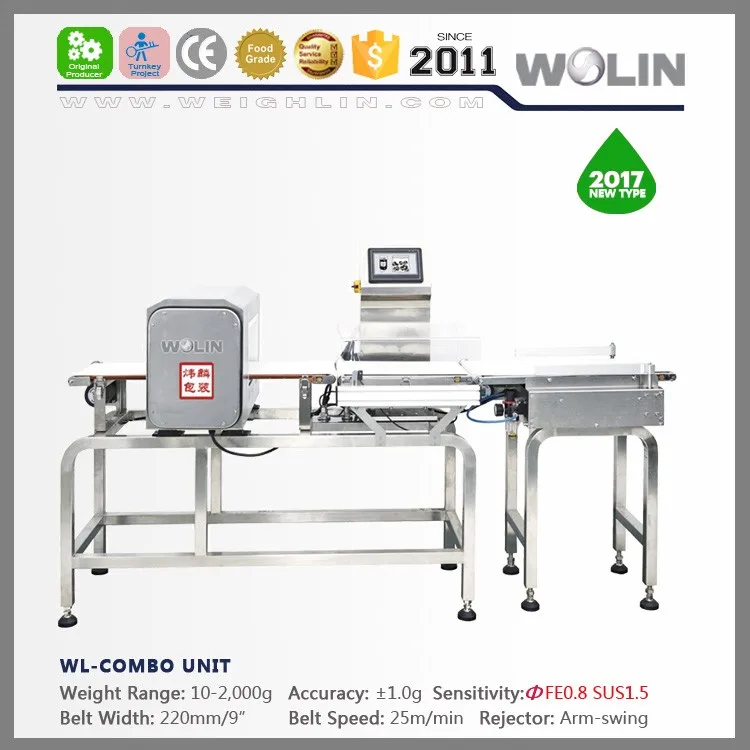

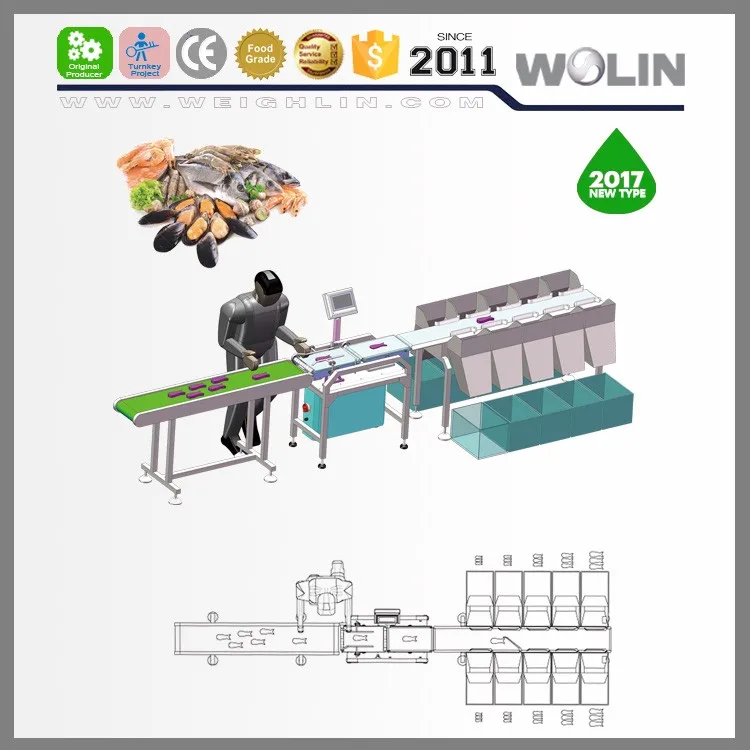

With the rapid development of various industries, quality control increasingly stringent, rely on our core technology R&D capabilities, Welin have developed and released a variety of online dynamic automatic weight checking sorting machine, metal detector and combo units to meet the current and future market demand with flexible custom ability, by using latest load cell DSP technology, compact design, hi-speed, hi-precision, stable running, easy operation, various rejecting system available, integrated with upstream and downstream equipment as a full packing line for wide application, such as bags, bottle, tray, can or box package, piece medicine or seafood sorting, toy inspecting, etc; It will help to enhance the quality control, improve production capacity, reduce maintenance, reduce labor, improve production and management efficiency.

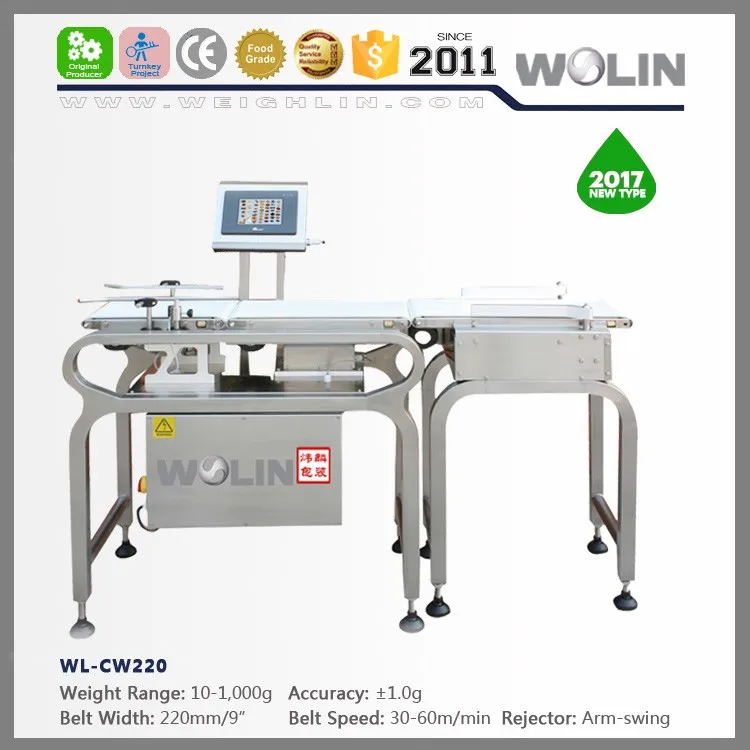

These new generation WELIN WL-CW series is a high speed and precision automatic online weight-checking equipment, it is use for checking if the product weight on the conveying-belt is comply to the setting target weight with tolerance, and also is able to auto-reject the less-weight or over-weight products.
A - The in-order products with equal distance lead to the weight-checking belt from infeed conveyor ; B - When the product pass the front photo-sensor on the weighing-belt, it start to weigh; C - During the period the product pass through the weighing-belt, the load cell will finish the weighing with AD technology and display the weight on the screen; D - It will compare the displayed weight with the setting target weight include up/down the tolerance, and reject the overweight or under-weight products, the over-weight and less-weight will be auto-rejected; all the weighing records will be saved or printed (option)
Special for small weight, small size products on high speed & precision running line, such as teabag, medicine, toys or metal parts, etc.
♦ How to choose a checkweigher?
- Confirm project requirements, such as product size, weight, accuracy, speed expected. - Make sure the machine frame is stable, no vibration during still or running. - The workmanship is good finish. - Components are good quality for long term reliable performance. - Easy to operate and use.
Product quality control avoid the client's complaints; Save material cost and reduce over-weight times; Online dynamic high speed weighing without influence the normal production; Stable performance with low maintenance;
♦ Key Features & Advantages
New generation model special for small weight project on high speed production line Compact and rigorous mechanical design with industry polish finish Full food grade 304SUS material building Using the latest DSP sensor digital signal processing technology Module control to ensure the operation of high speed sensitive stability 7" User-friendly touch screen control; Free setting the value during running; Quick dismantle and mount for easy-clean; Self-diagnosis alarm and reset feature; Multi-language screen is available; 3-level-password protection; Ensure the quality of imported electronic components
40-600weightments depend on project
PLC & Brushless Motor Driven
7" H.M.I. touch screen

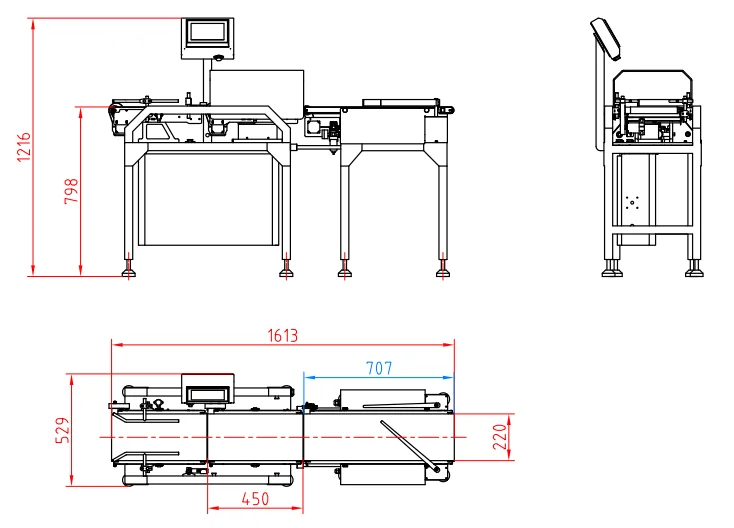

L 10-400mm W 10-300mm H 10-140mm
Weighing Belt Size
L420 × W220mm
Packing Dimension / Weight
L1600 × W350 × H900mm, 150KG
1 Phase AC220V±10% 50Hz/60Hz
Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
