STANDARD HOT SELLING FOR PISTACHIO LINEAR DOSER

FOB Reference Price:Get Latest Price
$100.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
P2H200
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Food
Packaging Material:
Plastic
Type:
Other, Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
1.5KW
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WELIN
Weight:
300kg

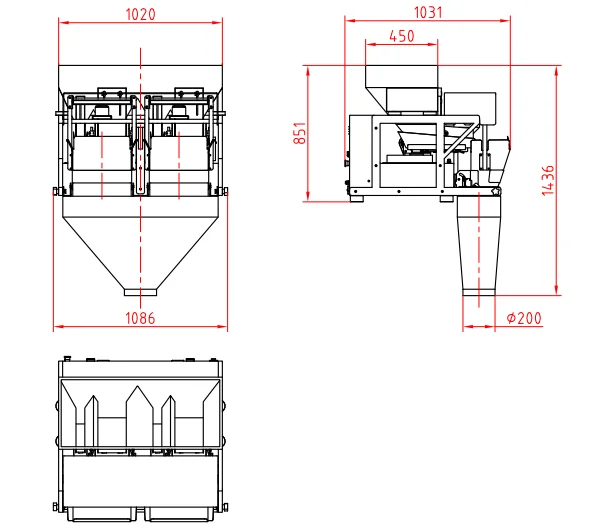

Dimension(L*W*H):
1730*1040*1036
Certification:
CE
Supply Ability
Supply Ability:
20 Case/Cases per Month
Packaging & Delivery
Packaging Details
Free Fumigation Plywooden Case for exporting, it's quick-connect design for easy open and re-usable;
Inner plastic film wrapping protect the goods from salting, wind or damage;
Port
ZHONGSHAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

♦ Overview

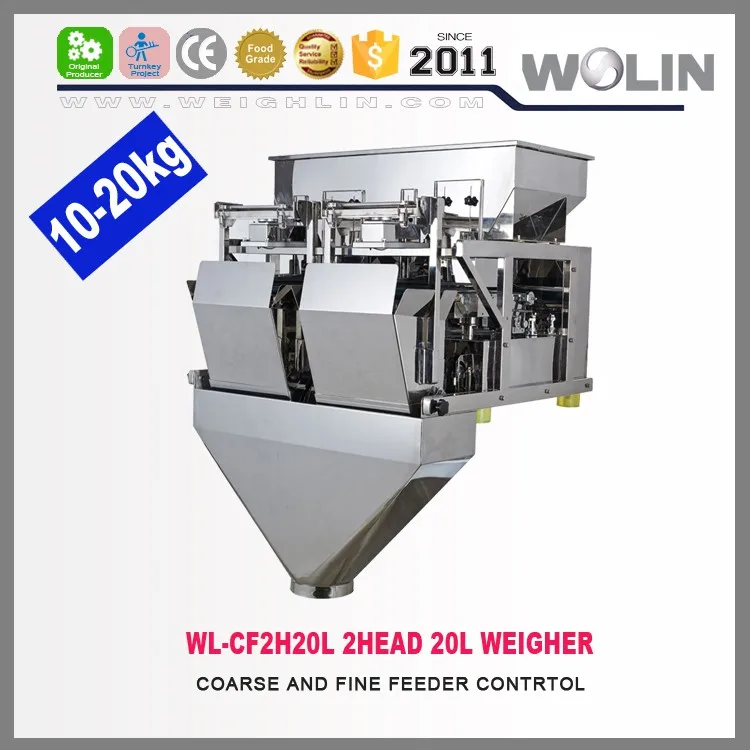

Based on years' experience, Welin develop and produce this economical and efficient linear weight filler series according to different material nature, the weighing speed and accuracy is controlled through vibrator strength and materail thickness, small invest, fast return, limited space, easy operation and maintenance, comparable speed and accuarcy on big weight with multihead, popular with small and Mid plant, save labor and materail, enhance efficiency, 1head, 2head, 3head and 4head or above heads, 1-2-3 level vibration feeder can be customized. Coarse and fine material feeding design, work alone or integrated with cup, bucke bottle, tray packing machine, vffs, mini doypack machine, etc.

Linear Weigher Weight Filler, fillers, weighing machine, weight, filler weight, grain filler, container filler, filler machine, net weight filler, weighing scale, auto weigher, semi-auto weight filler, etc.

♦ Application

Widely application for rice, seeds, fodder, beans, sugar, popcorn, chips, nuts, pet food, tea and metal or plastic parts, etc.

♦ Main Benefits

Compact design with small footprint
Low investment & Easy Operate
Complete high-precision automatic weighing filler
Flexible Integrates with auto-packaging & processing machinery or work standalone system
Accurate and reliable performance

♦ Key Technology

New compact frame design
Flexible weighing hopper volume
Powerful vibrator feeding material
304#SS food contacting parts
Free tool install and dismantle
Step motor driven system
1-2-3-4 Head is available
Coarse and Fine feeder control

Ajustable weighing ranges.

New generation modular control
Stable PLC control
User's friendly Wenview HMI
High precision load cell
Stable time running mode
Mixed or Combine weighing
Auto zeroing during running
Multilanguage screen control;

♦ Options

Front plastic enclosure
316SUS materialDump/Discharge Chute
Customized outlet sizeFoottick switchElevator
GantryCylinder vibrator
on in-feed hopper
Belt feeding
Pneumatic air cylinder fine flap

♦ SPECIFICATIONS

Model
WL-P2H200
Heads No.
2
Weighing Range
100g-20Kg
Accuracy
±0.1-5g
Running Speed
10-20 weightments/min
Hopper Capacity
20L capacity hopper
Control Panel
7" User's friendly Touch Screen
Load Cell Capacity
25kg strain gauge load cell
Driving System
Step Motor
Material feeding
By conveyor or manual
Control System
PLC + Modular PCB board
Building Material
304SUS
Option
Stainless steel stand with leveling base
Foot Actuation Switch
Dimpled plated surfaces
Big capactiy infeed hopper
Front glass enclosure
Power Requirement
AC200-240V+10%-15%, 1Phase, 50/60HZ
Products View
Company Information

Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
