CE STANDARD HIGH SPEED FOR BIG GRANULE LINEAR WEIGHER

FOB Reference Price:Get Latest Price
$100.00 - $2,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
P1H80
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Product Hightlights
After-sales Service Provided Application Packaging Material
Engineers available to service machinery overseas Food Plastic
Specifications
Type:
Other, Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
0.4kw
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WELIN
Weight:
85
Dimension(L*W*H):
730*520*926
Certification:
CE
Supply Ability
Supply Ability:
25 Case/Cases per Month
Packaging & Delivery
Packaging Details
Free Fumigation Plywooden Case for exporting, it's quick-connect design for easy open and re-usable. Inner plastic film wrapping protect the goods from salting
Port
ZHONGSHAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

♦ Overview

Based on years' experience, Welin develop and produce this economical and efficient linear weight filler series according to different material nature, the weighing speed and accuracy is controlled through vibrator strength and materail thickness, small invest, fast return, limited space, easy operation and maintenance, comparable speed and accuarcy on big weight with multihead, popular with small and Mid plant, save labor and materail, enhance efficiency, 1head, 2head, 3head and 4head or above heads, 1-2-3 level vibration feeder can be customized. Coarse and fine material feeding design, work alone or integrated with cup, bucke bottle, tray packing machine, vffs, mini doypack machine, etc.

Linear Weigher Weight Filler, fillers, weighing machine, weight, filler weight, grain filler, container filler, filler machine, net weight filler, weighing scale, auto weigher, semi-auto weight filler, etc.

♦Application

It's suitable for weighing slice, roll or regular shape products such as tea, leafs,sugar, salt, seed, rice, sesame, glutamate, milk powder, coffee powder and seasoning powder, etc.

♦ Main Benefits

Compact design with small footprint

Low investment & Easy Operate

Complete high-precision automatic weighing filler

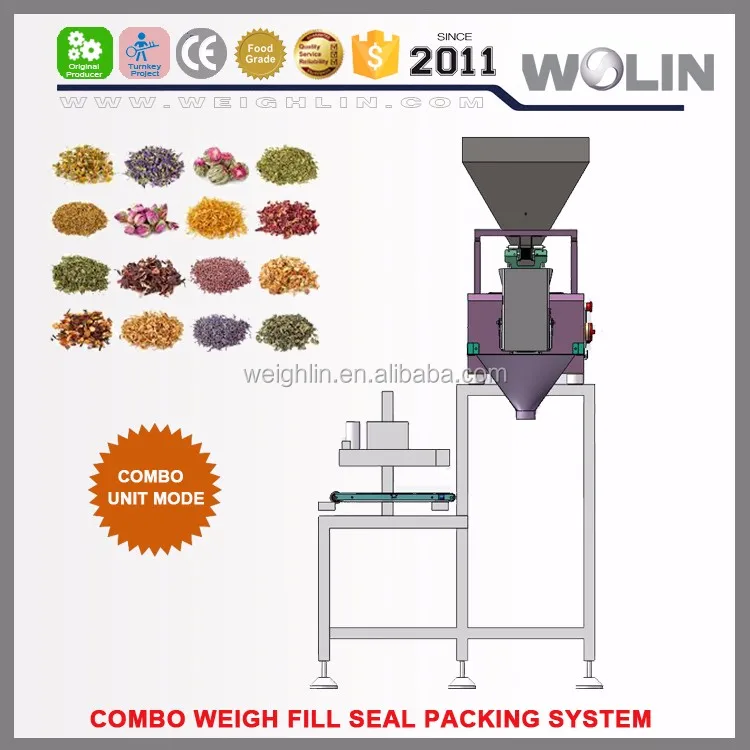

Flexible Integrates with auto-packaging & processing machinery or work standalone system

Accurate and reliable performance


♦ Options

Front plastic enclosure

316SUS materialDump/Discharge Chute

Customized outlet sizeFoottick switchElevator

GantryCylinder vibrator

on in-feed hopper

Belt feeding

Pneumatic air cylinder fine flap

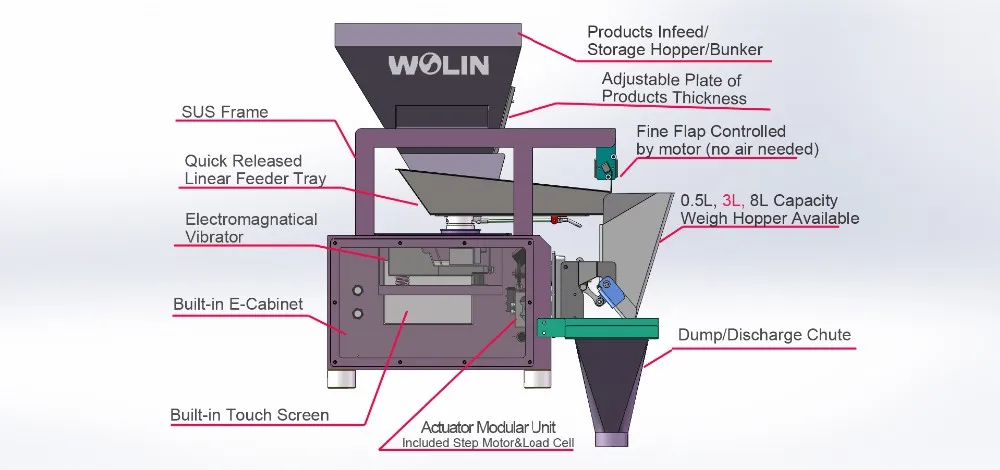

♦ Key Technology

New compact frame design

Flexible weighing hopper volume

Powerful vibrator feeding material

304#SS food contacting parts

Free tool install and dismantle

Step motor driven system

1-2-3-4 Head is available

Ajustable weighing range



New generation modular control

Stable PLC control

User's friendly Wenview HMI

High precision load cell

Stable time running mode

Mixed or Combine weighing

Auto zeroing during running

Multilanguage screen control

♦ SPECIFICATIONS

Model
WL-P1H80
Range of single bag weight
100-5000g
AV SNGL bag ERR / Weighing Accuracy
1-5g
Max weighing speed
1-10 bags/min
Hopper Capacity
8L
Control system
PLC
Preset Programs
10
Operation Panel
7 inch touch screen
Voltage/Power/Frequency/Rating Current
AC220V ±10% 50Hz(60Hz)
Packing Dimension (mm)
730(L)*520(W)*926(H)
Packing Weight
85KG
Product View
Company Information

Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
