Convenient High Precision For Lettuce Check Weigher

FOB Reference Price:Get Latest Price
$100.00 - $5,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
CW400
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Product Hightlights
After-sales Service Provided Application Packaging Material
Engineers available to service machinery overseas Food Plastic
Specifications
Type:
Other, Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
3KW
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WELIN
Weight:
230kg
Dimension(L*W*H):
1600*350*900
Certification:
CE
Supply Ability
Supply Ability:
20 Case/Cases per Month
Packaging & Delivery
Packaging Details
Free Fumigation Plywooden Case for exporting, it's quick-connect design for easy open and re-usable;
Inner plastic film wrapping protect the goods from salting, wind or damage
Port
ZHONGSHAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

With the rapid development of various industries, quality control increasingly stringent, rely on our core technology R&D capabilities, Welin have developed and released a variety of online dynamic automatic weight checking sorting machine, metal detector and combo units to meet the current and future market demand with flexible custom ability, by using latest load cell DSP technology, compact design, hi-speed, hi-precision, stable running, easy operation, various rejecting system available, integrated with upstream and downstream equipment as a full packing line for wide application, such as bags, bottle, tray, can or box package, piece medicine or seafood sorting, toy inspecting, etc; It will help to enhance the quality control, improve production capacity, reduce maintenance, reduce labor, improve production and management efficiency.

♦ Function

These new generation WELIN WL-CW series is a high speed and precision automatic online weight-checking equipment, it is use for checking if the product weight on the conveying-belt is comply to the setting target weight with tolerance, and also is able to auto-reject the less-weight or over-weight products.

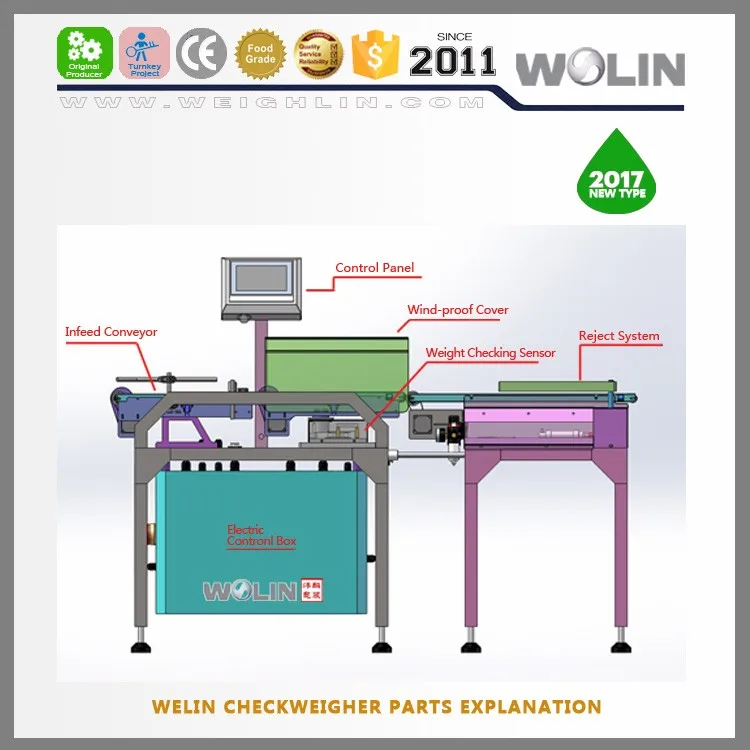

♦ Principle

A - The in-order products with equal distance lead to the weight-checking belt from infeed conveyor ;
B - When the product pass the front photo-sensor on the weighing-belt, it start to weigh;
C - During the period the product pass through the weighing-belt, the load cell will finish the weighing with AD technology and display the weight on the screen;
D - It will compare the displayed weight with the setting target weight include up/down the tolerance, and reject the overweight or under-weight products, the over-weight and less-weight will be auto-rejected; all the weighing records will be saved or printed (option);

♦ Application

Special for small weight, small size products on high speed & precision running line, such as teabag, medicine, toys or metal parts, etc.

♦ How to choose a checkweigher?

- Confirm project requirements, such as product size, weight, accuracy, speed expected.
- Make sure the machine frame is stable, no vibration during still or running.
- The workmanship is good finish.
- Components are good quality for long term reliable performance.
- Easy to operate and use.

♦ Benefits

Product quality control avoid the client's complaints;
Save material cost and reduce over-weight times;
Online dynamic high speed weighing without influence the normal production;
Stable performance with low maintenance;

♦ Key Features & Advantages

New generation model special for small weight project on high speed production line
Compact and rigorous mechanical design with industry polish finish
Full food grade 304SUS material building
Using the latest DSP sensor digital signal processing technology
Module control to ensure the operation of high speed sensitive stability
7" User-friendly touch screen control;
Free setting the value during running;
Quick dismantle and mount for easy-clean;
Self-diagnosis alarm and reset feature;
Multi-language screen is available;
3-level-password protection;
Ensure the quality of imported electronic components

♦SPECIFICATIONS

Model
WL-CW400
Weighing Range
50-2000g
Checking Accuracy
±0.1-1.5g
Min. Scale
0.1g
Running Capacity
40-600weightments depend on project condition
Belt Speed
25-42m/min
Control System
PLC & Brushless Motor Driven
Operation Panel
7" H.M.I. touch screen
Load Cell
15kg gauge
Product Size
L 10-400mm W 10-300mm H 10-140mm
Weighing Belt Size
L420 × W400mm
Belt Height
600-750mm
Rejector Device
Air-Pusher
Packing Dimension / Weight
L1600 × W350 × H900mm, 150KG
Power Supply
1 Phase AC220V±10% 50Hz/60Hz
Products View
Company Information

Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
