DUPLEX 2 HEAD FOR HARDWARE LINEAR WEIGHER

FOB Reference Price:Get Latest Price
$100.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DP2H50
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Food
Packaging Material:
Plastic
Type:
Other, Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
1.5KW
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WELIN
Weight:
150KG
Dimension(L*W*H):
995*665*941
Certification:
CE
Supply Ability
Supply Ability:
25 Case/Cases per Month
Packaging & Delivery
Packaging Details
Free Fumigation Plywooden Case for exporting, it's quick-connect design for easy open and re-usable;
Inner plastic film wrapping protect the goods from salting, wind or damage;
Shipping terms: EXWORK, FOB, C&F, CIF terms by sea or air are acceptable for us.
Bulk or container shipment can be done
Port
ZHONGSHAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

♦ Overview

Based on years' experience, Welin develop and produce this economical and efficient linear weight filler series according to different material nature, the weighing speed and accuracy is controlled through vibrator strength and materail thickness, small invest, fast return, limited space, easy operation and maintenance, comparable speed and accuarcy on big weight with multihead, popular with small and Mid plant, save labor and materail, enhance efficiency, 1head, 2head, 3head and 4head or above heads, 1-2-3 level vibration feeder can be customized. Coarse and fine material feeding design, work alone or integrated with cup, bucke bottle, tray packing machine, vffs, mini doypack machine, etc.

Linear Weigher Weight Filler, fillers, weighing machine, weight, filler weight, grain filler, container filler, filler machine, net weight filler, weighing scale, auto weigher, semi-auto weight filler, etc.

♦ Application

Widely application for rice, seeds, fodder, beans, sugar, popcorn, chips, nuts, pet food, tea and metal or plastic parts, etc.

♦ Main Benefits

Compact design with small footprint

Low investment & Easy Operate

Complete high-precision automatic weighing filler

Flexible Integrates with auto-packaging & processing machinery or work standalone system

Accurate and reliable performance

No jamming, no blocking, no stocking problem

♦ Options

Front plastic enclosure

316SUS materialDump/Discharge Chute

Customized outlet sizeFoottick switchElevator

GantryCylinder vibrator

on in-feed hopper

Belt feeding

Pneumatic air cylinder fine flap

♦ Key Technology

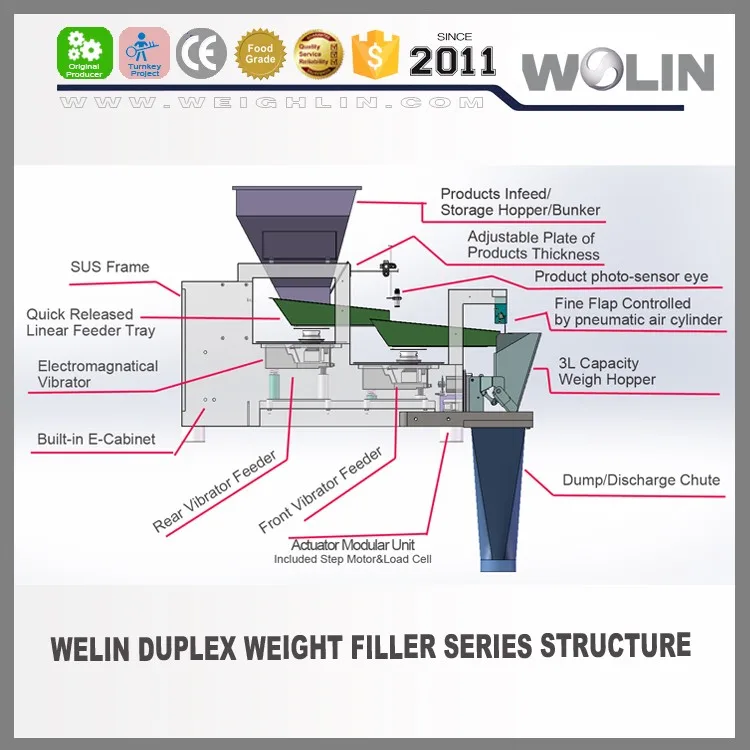

Duplex Weight Filler design and build

New compact frame design

Flexible weighing hopper volume

Powerful vibrator feeding material

304#SS food contacting parts

Free tool install and dismantle

Step motor driven system

1-2-3-4 Head is available;

Ajustable weighing range

Coarse and fine control feeder

New generation modular control

Stable PLC control

User's friendly Wenview HMI

High precision load cell

Stable time running mode

Mixed or Combine weighing

Auto zeroing during running

Multilanguage screen control;

♦ SPECIFICATIONS

Model
WL-DP2H50
Heads No.
2Head
Weighing Range
50-5000g
Accuracy
1-20g
Running Speed
6-10 weightments/min
Hopper Capacity
5000ml hopper
Control Panel
7" User's friendly Touch Screen
Load Cell Capacity
8kg strain gauge load cell
Driving System
Step Motor
Material feeding
By conveyor or manual
Control System
MCU
Building Material
304SUS
Option
Stainless steel stand with leveling base
Foot Actuation Switch
Dimpled plated surfaces
Big capactiy infeed hopper
Front Glass Enclosure
Power Requirement
AC200-240V+10%-15%, 1Phase, 50/60HZ
Products View
Company Information

Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
