Automatic specially design powder filling system

FOB Reference Price:Get Latest Price
$19,000.00 - $39,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
S15
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
custom weigh pack solution (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Food
Packaging Material:
Plastic
Type:
Other, Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
7.5kw
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WELIN
Weight:
900kg
Dimension(L*W*H):
6450*4000*1800
Certification:
CE
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Free Fumigation Plywooden Case for exporting, it's quick-connect design for easy open and re-usable;
Inner plastic film wrapping protect the goods from salting, wind or damage
Port
ZHONGSHAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

♦ Overview

Based on years' experience and development, Located in Zhongshan, service for global! Found in 2011, through years' efforts and development, Welin have owned more modern working facility and obtained know-how and experience for various automatic packaging machinery R&D and full turnkey feeding weighing packaging and inspecting line. We're becoming a high-tech enterpreture integrated with R&D, manufacturing, marketing and service backup, main products are included auto weight filler, VFFS, mini doypack machine, weight checking sorting and inspecting, etc and whole turnkey solution, which is widely used in snack food, puffy food, fresh frozen food, agriculture, medical, chemical and hardware, etc field.

♦ Application

Typically filling / weighing / packing powder, flour, dry milk products, powdered eggs, whey powder, infant formula etc.

♦ Key Technology

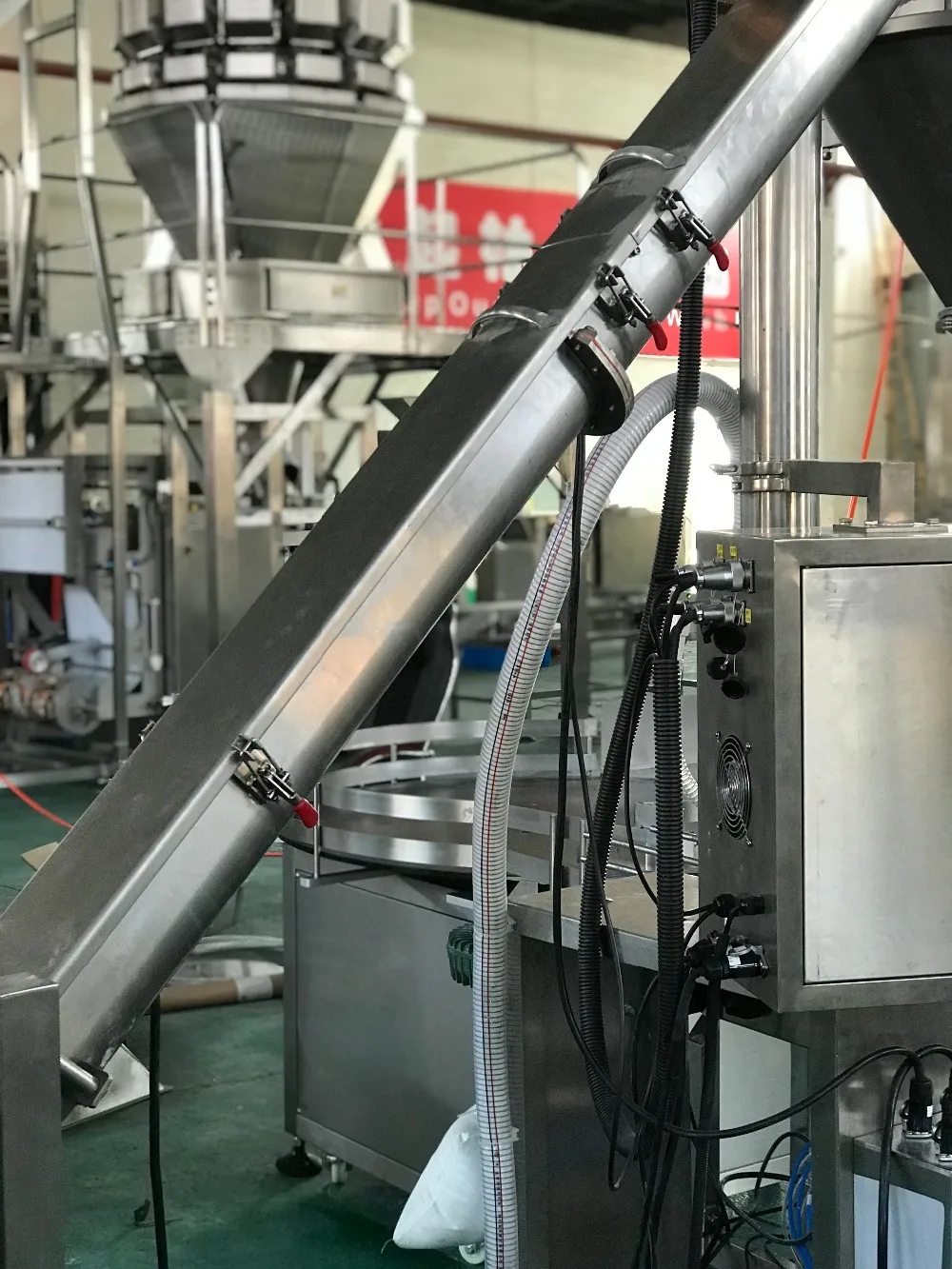

Screw conveyor for feeding powder

Accurately Dosing by Auger Filler

Filling by a Motor, Adjustable Speed

All Food-grade SUS304 Contact Parts

Tool-free and Quick to Remove for cleaning

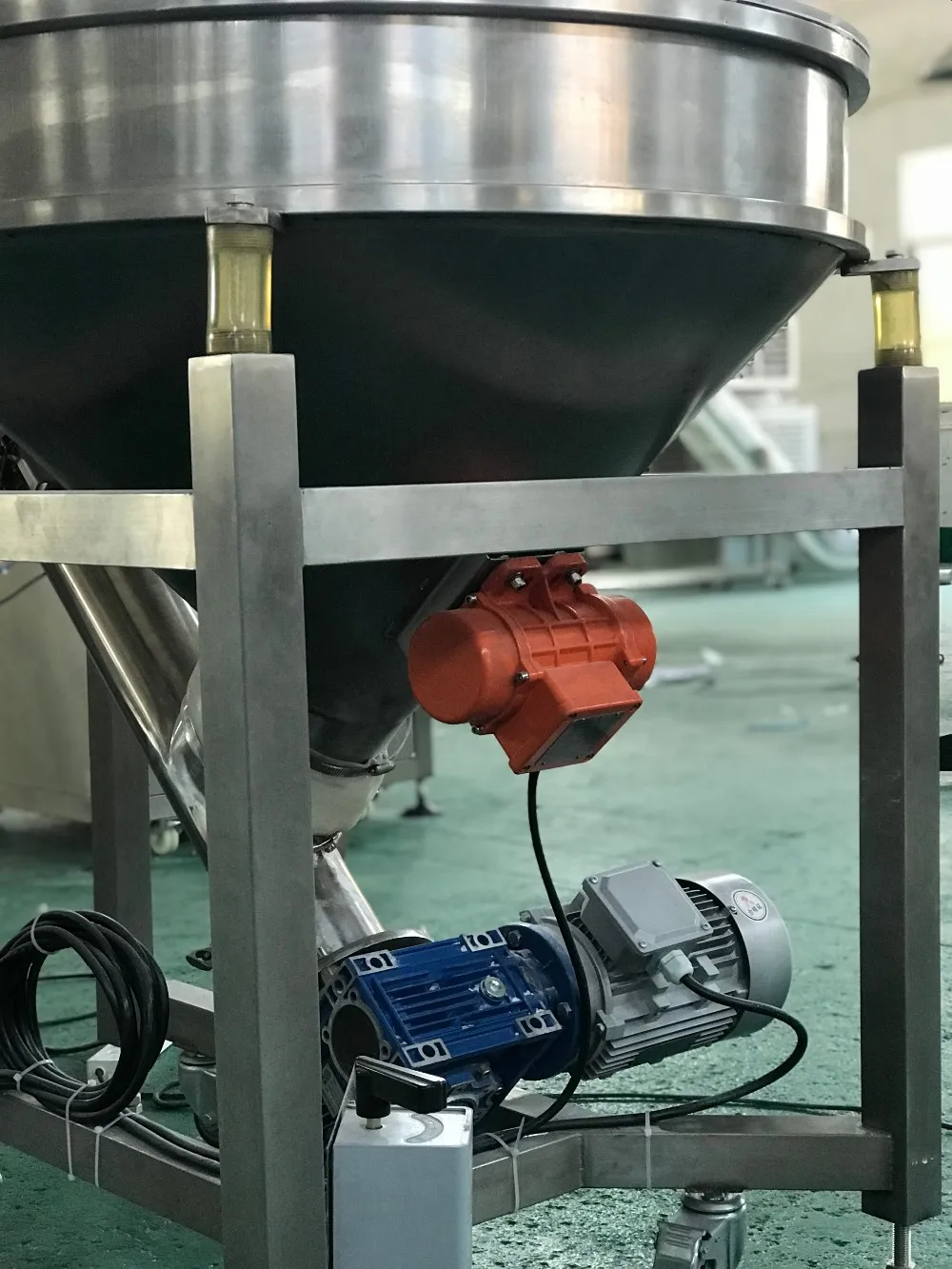

Vibrator ensures powder smoothly flowing down

Simple and Fast for Operator seting up Parameter


Woking stand builds 2 wheels for quick and easy re-position

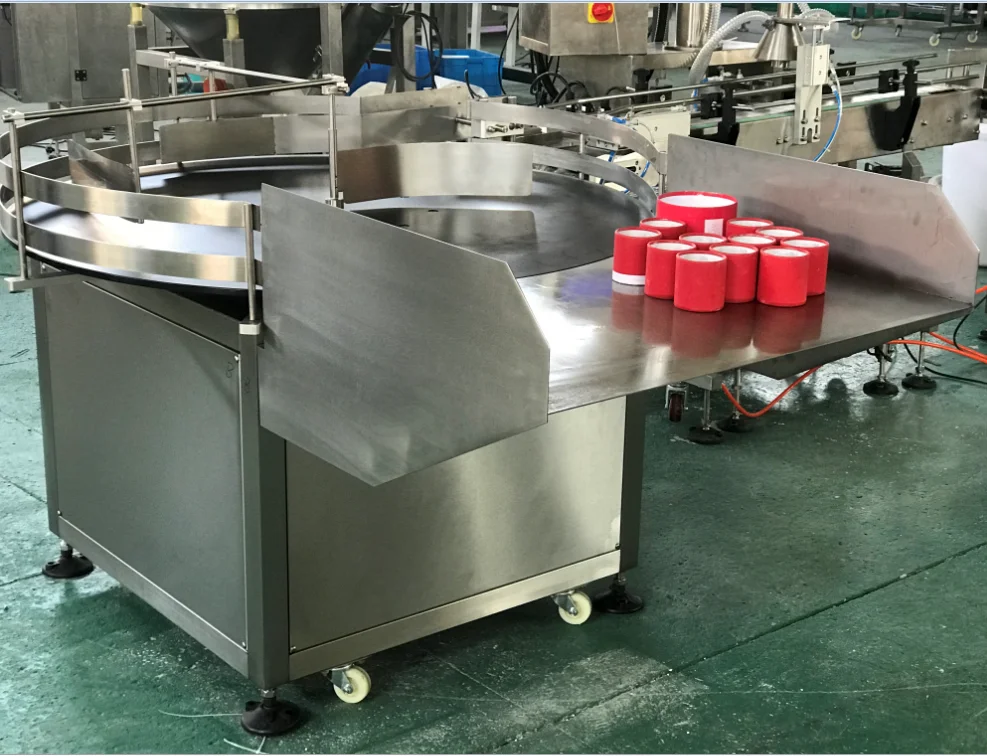

Rotary Bottle feeding & Collecting table with diameter 800mm

A mesh enclosure over the feeding inlet ensures to prevent any bigger objective conveying to the topper hopper

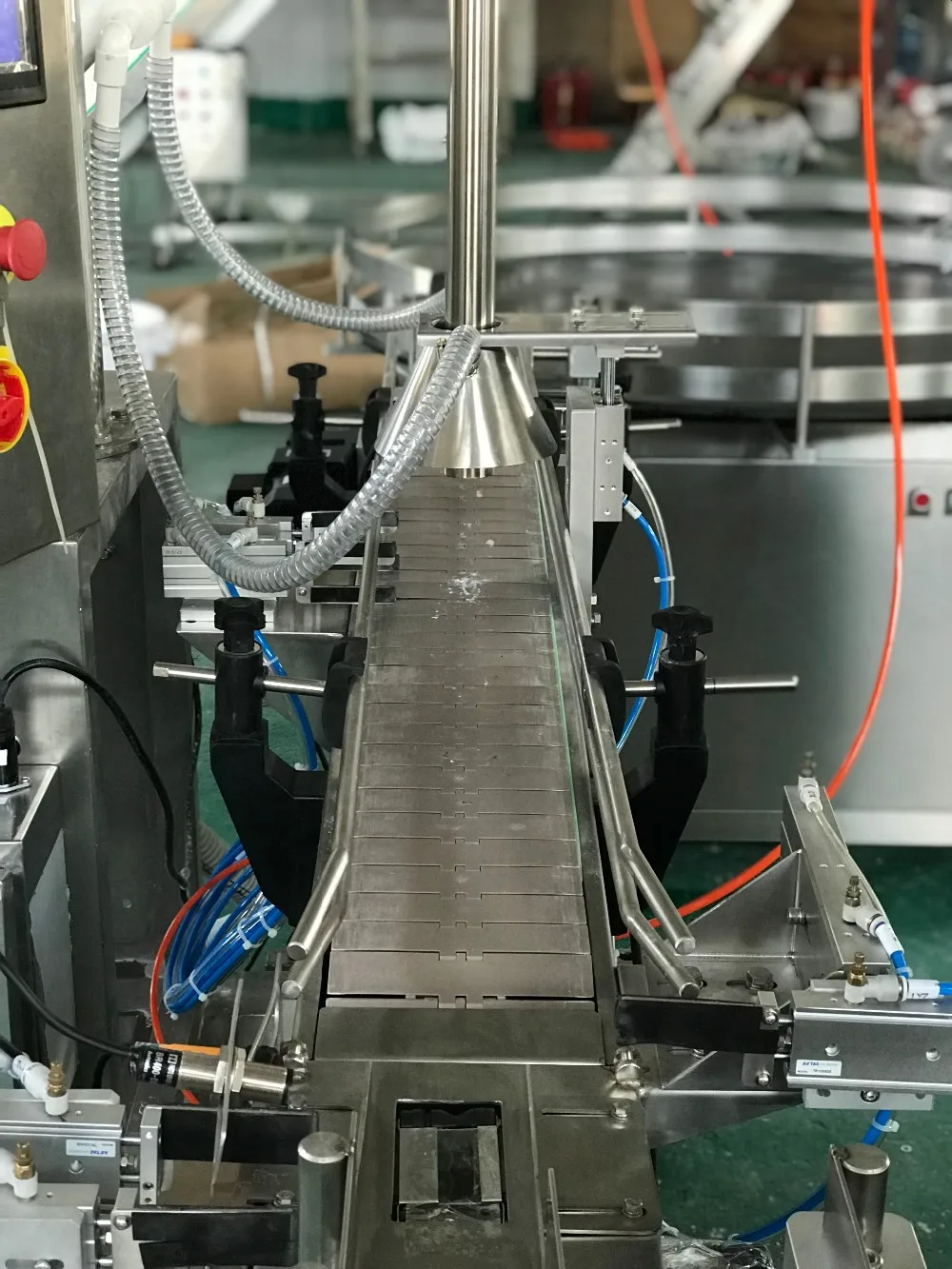

Feeding Table by Eye Mark Controller, Wait for Filling by Eye Mark Controller, Transport Filled- bottles to next station - Rotary Collect Table
Model
WL-S15
Hopper Volume
30L
Filling Range
10 - 1000g
Filling Speed
10 - 25 fills/min
Filling Accuracy
0.1 - 1.5g
Weighing Accuracy
0.1 - 1.5g
Control Panel
7" User's Friendly Touch Screen
Driving System
Step Motor / Servo Motor
Control System
PLC
Function
Fill-To-Weight
Material Feeding
By Screw Conveyor
Building Material
SUS304 Stainless Steel
Power Requirement
110V / 220V 50/60Hz 1Phase
Option
Output Conveyor / Metal Detector / Weight Checker / Rejector System / Collecting table ---

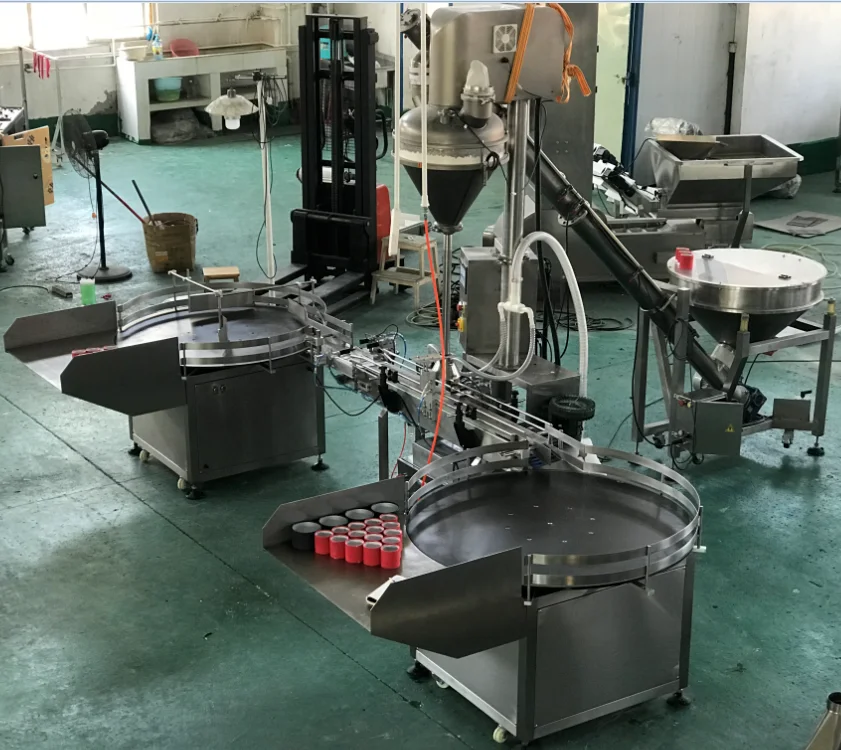

Products view
Company Information

Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
