Weighing and sealing for corn manual packing system

FOB Reference Price:Get Latest Price
$100.00 - $4,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
P1H30
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
After-sales Service Provided:
Engineers available to service machinery overseas
Application:
Food
Packaging Material:
Plastic
Type:
Other, Other
Condition:
New
Packaging Type:
Cartons
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Power:
7.5kw
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
WELIN
Weight:
250kg
Dimension(L*W*H):
1800*1100*1900mm
Certification:
CE
Supply Ability
Supply Ability:
20 Case/Cases per Month
Packaging & Delivery
Packaging Details
Free Fumigation Plywooden Case for exporting, it's quick-connect design for easy open and re-usable;
Inner plastic film wrapping protect the goods from salting, wind or damage
Port
ZHONGSHAN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

♦ Overview

Based on years' experience, Welin develop and produce this economical and efficient linear weight filler series according to different material nature, the weighing speed and accuracy is controlled through vibrator strength and materail thickness, small invest, fast return, limited space, easy operation and maintenance, comparable speed and accuarcy on big weight with multihead, popular with small and Mid plant, save labor and materail, enhance efficiency, 1head, 2head, 3head and 4head or above heads, 1-2-3 level vibration feeder can be customized. Coarse and fine material feeding design, work alone or integrated with cup, bucke bottle, tray packing machine, vffs, mini doypack machine, etc.

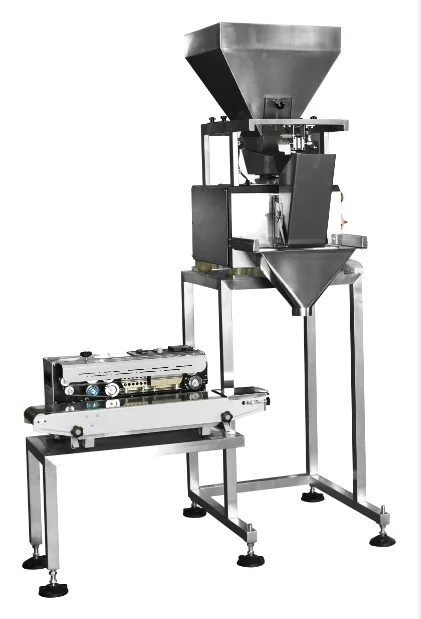

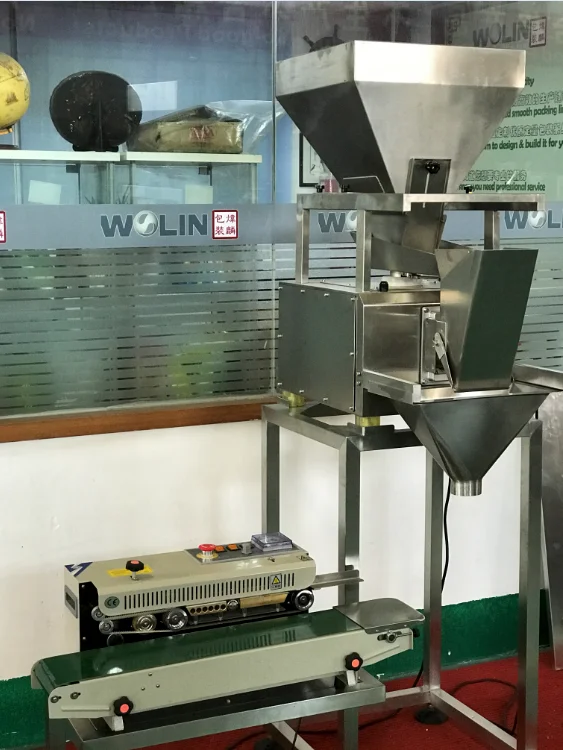

This combo version is included 1 head weigher and sealing machine for various premade standup or normal pouches, compact design with limited space, which is very economical packaging solution for different granules project.

Linear Weigher Weight Filler, fillers, weighing machine, weight, filler weight, grain filler, container filler, filler machine, net weight filler, weighing scale, auto weigher, semi-auto weight filler, etc.

♦ Application

Widely application for 10-1500g rice, seeds, fodder, beans, sugar, popcorn, chips, nuts, pet food, tea and metal or plastic parts, semi-auto weigh fill seal function, etc.

♦ Main Benefits

Compact design with small footprint
Low investment & Easy Operate
Complete high-precision automatic weighing filler
Flexible sealing machine for vertical belt moving
Accurate and reliable performance
Small footprint

♦ Options

Front plastic enclosure
316SUS materialDump/Discharge Chute
Customized outlet size
Foottick switchElevator
Gantry
Cylinder vibrator
Big capacity in-feed hopper
Belt feeding
Pneumatic air cylinder fine flap


♦ Key Technology

Combo weighing and sealing function
New compact frame design
Flexible adjustable dump height
Powerful vibrator feeding material
304#SS food contacting parts
Free tool install and dismantle
Step motor driven system
1-2-3-4 Head is available

Ajustable weighing range
New generation modular control
Stable PLC control
User's friendly Wenview HMI
High precision load cell
Stable time running mode
Auto zeroing during running
Multilanguage screen control

♦ SPECIFICATIONS

Model
WL-COMBO1HWS
Heads No.
1
Weighing Range
10-1500g
Accuracy
±0.1-1.5g
Running Speed
8-15 weightments/min per head
Hopper Capacity
3L hopper, can be customized
Control Panel
7" User's friendly Touch Screen
Load Cell Capacity
8kg strain gauge load cell
Driving System
Step Motor
Material feeding
By conveyor or manual
Control System
PLC + Modular PCB board
Building Material
304SUS
Option
Foot Actuation Switch
Dimpled plated surfaces
Big capactiy infeed hopper
Front enclosure
Power Requirement
AC200-240V+10%-15%, 1Phase, 50/60HZ
Products View
Company Information

Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
