Free Fumigation Plywooden Case for exporting, it's quick-connect design for easy open and re-usable;
Inner plastic film wrapping protect the goods from salting, wind or damage;
1 - 1
To be negotiated

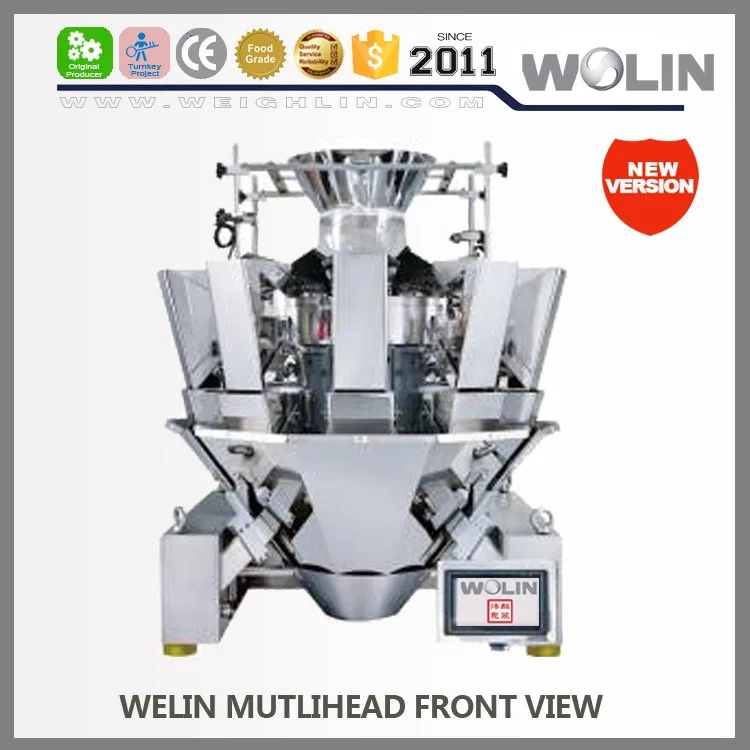

Welin's new modular multiple head combination weighing filler series are with the feature of hi-speed, hi-accuracy and reliable performance. Adopting numbers combination theory, CPU auto calculate and choose the closest target weight combination hoppers to dump to the downstream units, such as manual filling, various packing machine, or tray, bottle, bucket, can filling device, also integrated with weight checker, metal detector or X-ray. Widely applied for food or non-food packing industry, such as rice, seeds, nuts, candy, snack food, potato chips, IQF food, biscuits, bread, fresh vegetable and fruits, hardware or plastic parts, etc. Besides, as for fragile, hard-flowing, long-stick or mixed products, basing on years successful experience, we can custom mechanical and program to meet the project requirements, such as dimple plate, timing hopper, inclined feeder pan, piece counting, 1 to 2-3-4-5 points dump or IP65 waterproof design, etc.
♦ Multihead weighers working principles
Products to be firstly delivered by conveyor and fed into the upper bunker funnel. Then it can be dispersed to linear Feeder Pans from the vibrating Top Cone. The products feeding thickness can be changed by adjusting the height of the Infeed Funnel. Products are distributed evenly into each Linear Feeder Pan, stored in Feed Bucket. When Weigh Buckets complete the previous weighing and after they are dropped out, products to be weighed in Feed Buckets can be fed into Weigh Buckets to prepare for next combination. Meanwhile this multihead weighers can work with other equipments like packaging machines or conveyor by signal communication

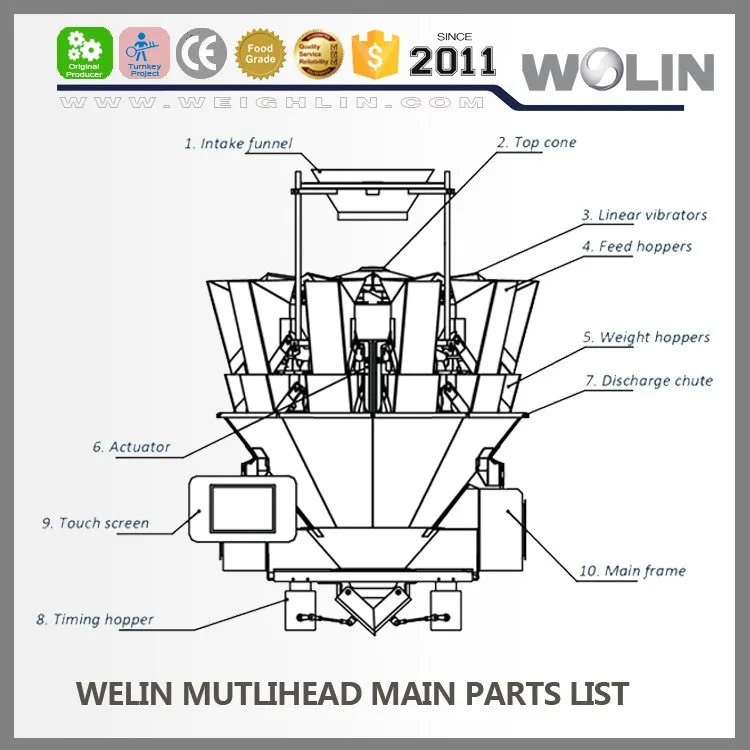

1 Indeed Funnel/Supply hopper 2 Level Sensor 3 Top Cone 4 Linear Feeder Pan 5 Feed Bucket/Hopper 6 Weigh Bucket/Hopper 7 discharge/dump/Collating Chute 8 Machine body or Base Frame 9 Collating Funnel 10 Wire For Control Panel 11 Main Power switch 12 Display 13 Hook for display 14 Hang Bolt 15 Aluminum Case 16 Collecting hopper/bucket

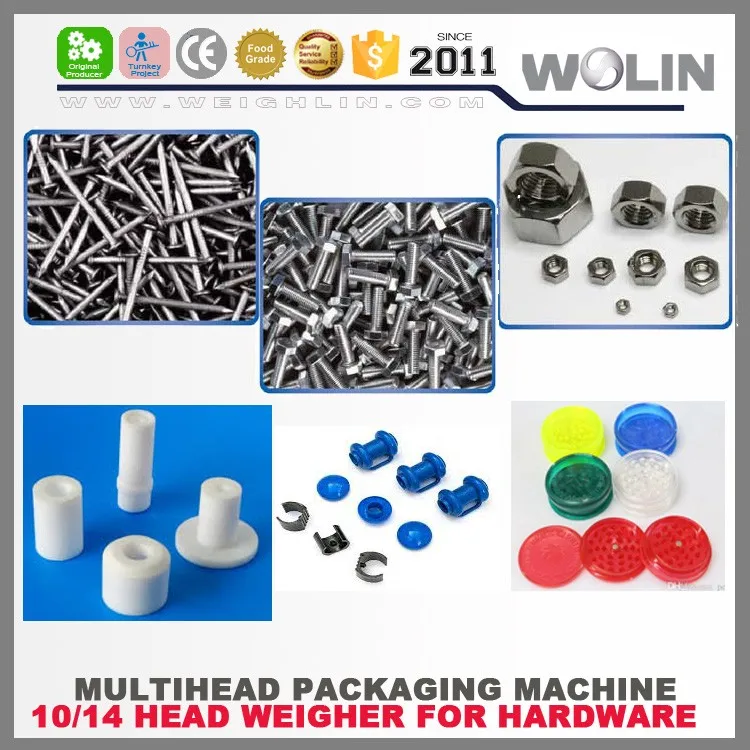

This unit is with special design on the feeder, hopper and dump chute, which is ideal for hardware and plastic weighing filling, etc.
Equiped high level hopper protection hopper and chute for hardware impacting. Adopt high precision load cell for reliable performance. Program recovery function can reduce improper-operation. Auto pause when no enough products ensure running fluency; Preset 100 programs and help menu for easy operation; Linear amplitude can be adjusted independently; Product can be max. 30mm length; Full 304SUS material building for food industry; Free tool parts released design for easy clean;
Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.
